Types of Hard Magnetic Materials: AlNiCo, NdFeB, SmCo & Ferrite
Comprehensive guide to hard magnetic materials — AlNiCo (high remanence, temperature stability), NdFeB (strongest, needs coating), SmCo (high temperature, corrosion resistant), and Ferrite (cost-effective, widely used). Applications, temperature limits, and coating options covered.
Hard magnets are essential across industries — from audio systems and motors to medical imaging and aerospace. This guide covers the four main families of hard magnetic materials, their properties, temperature limits, coatings, and applications.
1. AlNiCo (Aluminum-Nickel-Cobalt)
Properties: High remanence, low coercivity, excellent temperature stability (up to 860°C), corrosion resistant.
Grades: AlNiCo 5, 8, 9 — varying Co/Al/Ni ratios.
Applications: Electric motors, guitar pickups, microphones, sensors, Hall-effect devices, MRI components, aerospace actuators, high-temp fixtures, therapeutic heating.

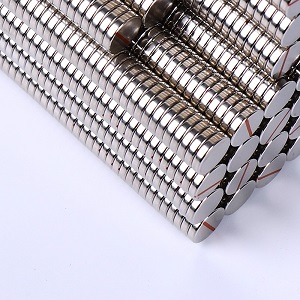

2. NdFeB (Neodymium-Iron-Boron) — Strongest Permanent Magnets
Properties: Highest energy product (35–52 MGOe), high remanence, moderate coercivity. Max operating temp: 80°C (standard) to 200°C (high-grade). Prone to corrosion — requires coating.
Coatings: NiCuNi, Zn, epoxy, Al composite, PTFE, phosphating.
Grades: N35–N52, M/H/SH/UH/EH series for temperature stability.
Applications: EV motors, wind generators, compressors, high-speed motors, elevator motors, VCM (HDD/CD-DVD), servo motors, vibration motors, magnetic separators, audio (speakers, microphones, guitars), sensors, reed switches.

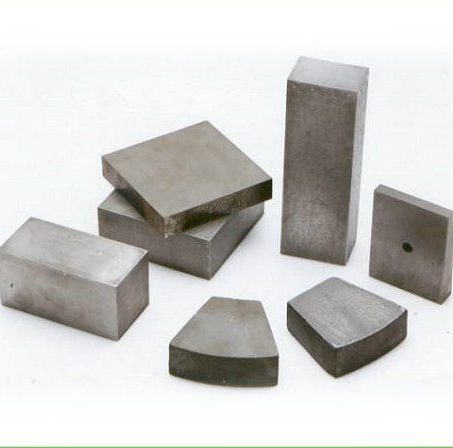

3. SmCo (Samarium-Cobalt) — High-Temperature Performance
Properties: 2nd highest energy product, excellent temperature stability (up to 350°C), corrosion resistant (no coating needed), good low-temp performance.
Compositions: SmCo₅ (1:5) and Sm₂Co₁₇ (2:17) — latter has higher temperature stability.
Applications: Aerospace actuators, microwave devices, high-temp motors, turbo machinery, downhole pumps, magnetic couplings/bearings, gyroscopes, accelerometers, particle accelerators, medical devices, radar-absorbing materials, robotic arms.

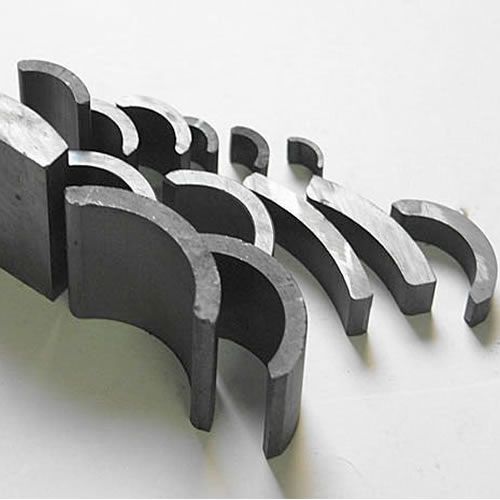

4. Ferrite (Ceramic) Magnets — Ba/Sr Ferrite
Properties: High hardness, good corrosion resistance, low cost. Max operating temp: ~450°C. Lower energy product than rare-earth magnets.
Grades: Y10T, Y8T, custom grades.
Applications: Refrigerator seals, magnetic strips, credit cards, switches/relays, EDM, speakers, microwave components, toys/decoration, power tools, washing machines, ABS systems, printers, step motors.
Quick Comparison
| Material | Max Energy (MGOe) | Max Temp (°C) | Corrosion | Cost |
|---|---|---|---|---|
| NdFeB | 35–52 | 80–200 | Needs coating | Medium-High |
| SmCo | 16–32 | 250–350 | Resistant | High |
| AlNiCo | 5–9 | 450–860 | Resistant | Medium |
| Ferrite | 1–4.5 | ~450 | Resistant | Low |
Key Takeaways
- NdFeB — Maximum performance, needs coating, temp-limited
- SmCo — Best for high-temp/corrosive, no coating needed
- AlNiCo — Highest temp stability, low coercivity
- Ferrite — Lowest cost, good for high-volume, non-critical apps
Khat Group supplies all four magnet families and provides material selection consulting for your application. Contact us for technical support.
Khat Group — Your partner in magnetic materials selection.
